Uses
Projects you can do with the Printer:
DTF productivity with UV quality

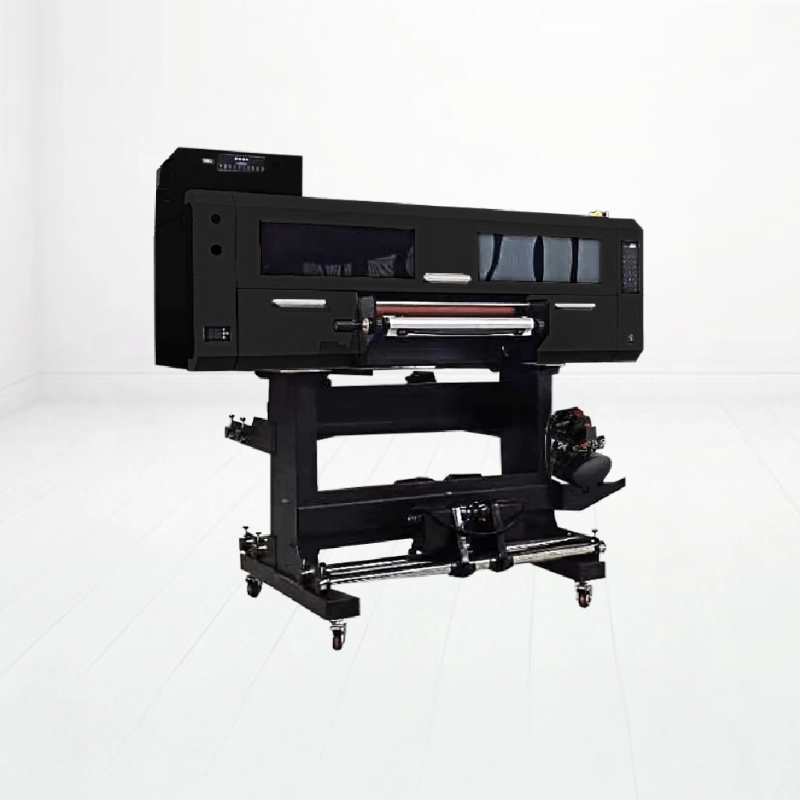

The Spectrum DTF 600 is designed for continuous production in 600 mm format, combining speed and detail in a single solution. Its up to 4 Epson i3200 printheads, featuring Japanese technology, enable the use of a UV DTF configuration with a resolution of up to 2400 dpi, ideal for sharp graphics and consistent colors. The CMYK+W+V color configuration, with an option for up to 8 colors including fluorescent inks, expands design possibilities and visual effects. The feed and take-up system with rubber rollers ensures stable media feed, optimized for sustained runs. The use of solvent- and VOC-free UV LED inks, which comply with REACH and RoHS, helps reduce environmental impact within the specified parameters. All of this makes the Spectrum DTF 600 a solution geared toward UV DTF production with a focus on quality and stability.

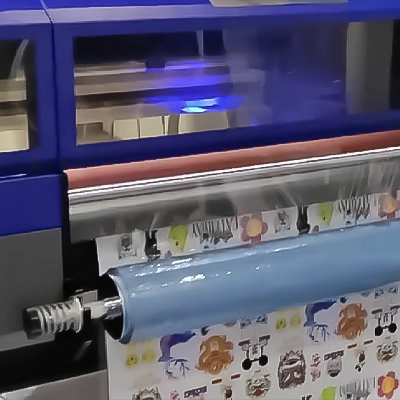

Up to 2,400 dpi and 15 m²/h
The Spectrum DTF 600 combines a print resolution of up to 2400 dpi with a rated speed of 15 m²/h, according to the technical specifications. Thanks to piezoelectric inkjet technology and Epson i3200 printheads, it produces detailed graphics and sharp outlines. The CMYK+W+V color configuration, with an option for up to 8 colors, is managed via standard ICC color management, which helps maintain color consistency across files and print runs. This combination of resolution and speed is designed for environments that require a balance between production and visual quality within the 600 mm print width.
DTF printing in 600 mm format
The Spectrum DTF 600 uses rubber rollers for both media feed and take-up, with a print width of 600 mm. This configuration is designed for roll-to-roll production within the UV LED DTF system. Roller-controlled feed enhances media stability during printing, helping to maintain registration throughout the working length. This allows for continuous printing at the specified width, taking full advantage of the color configuration and UV LED curing technology described for the machine.
Production-ready UV DTF setup
The Spectrum DTF 600 is designed to ensure a stable 600-mm UV DTF workflow.
- Model: SPECTRUM DTF-600
- Up to 4 Epson i3200 printheads.
- Print width/size: 600 mm.
- Print speed: 15 m²/h.Printing technology: Piezoelectric inkjet.

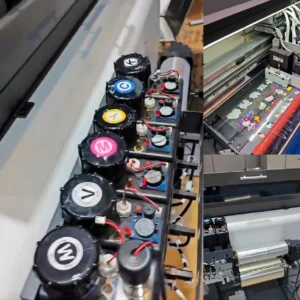

- Color configuration: CMYK+W+V, option for up to 8 colors (C, M, Y, K, FM, FY, V, W).
- Color management: ICC standard.
- Media handling: Feed and take-up with rubber rollers.
- Ink capacity: 1.5 L.
- RIP software: FlexiPRINT, Maintop, Onyx.
- File formats: TIFF, PDF, JPG, JPEG.
- Voltage: 220 V, 50–60 Hz, 1000 W.
- Recommended operating environment: 25–28 °C, 50% humidity.
- Dimensions: 1700×850×1420 mm; net weight 130 kg, gross weight 170 kg.

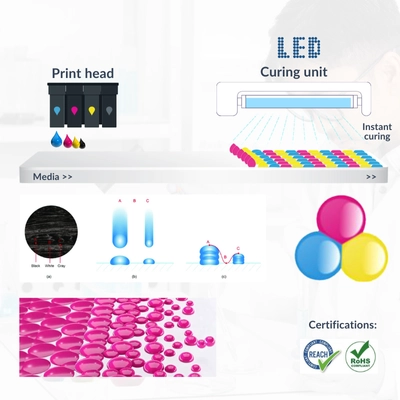

Certified eco-friendly UV LED inks
The Spectrum DTF 600 uses UV LED ink formulated for curing via a UV system, which is marketed as eco-friendly in the product line. According to the information provided, the ink is solvent-free and VOC-free and complies with REACH and RoHS regulations, ensuring minimal environmental impact within these parameters. The color configuration supports CMYK+W+V and an option for up to 8 channels (C, M, Y, K, Fluorescent Magenta, Fluorescent Yellow, Varnish, and White), allowing for the combination of color, white, and varnish according to the selected configuration. This ink system integrates with standard ICC color management and the UV LED curing specified in the technical data sheet, designed for 600 mm-wide UV DTF production.
