Industrial single-pass scalability

The Spectrum S1500 is designed for industrial production on kraft paper, cardboard, corrugated cardboard, paper, and other porous materials. Its five FI1000 printheads and 1,500 mm print width enable it to handle large formats and multiple designs per pass, while maintaining speeds of up to 30 m/min. The combination of water-based and pigment-based CMYK inks delivers results suitable for paper-based packaging applications, while ICC control helps ensure consistency across print runs. It is a robust platform for those who need to scale up volume without sacrificing digital flexibility.

A balance of speed and detail

The S1500 prints at 30 m/min with resolutions of 1200×300 dpi, 1200×600 dpi, and 1200×1200 dpi. This allows you to choose the optimal balance between productivity and level of detail depending on the job: from high-volume printing where speed is paramount, to prints requiring higher definition for text, codes, or graphics on porous materials within a width of 1500 mm.

Optimized for paper packaging

The Spectrum S1500 is designed for use on kraft paper, cardboard, corrugated cardboard, paper, and other porous materials with a thickness of 1–80 mm. This thickness range makes it suitable for a wide variety of boxes, trays, and paper-based packaging solutions, enabling direct printing onto the substrate within its 2,500 mm wide feed specifications.

FI1000 5-Head Platform

Designed for continuous large-format production on porous substrates.

Model: S1500

Technology: Piezoelectric inkjet

Printhead: FI1000

Number of printheads: 5

Colors: C/M/Y/K

Ink: Water-based and pigment-based

Print width: 1500 mm

Feed width: 2500 mm

Material thickness: 1–80 mm

Print speed: 30 m/min

Max. resolution: 1200×1200 dpi

Optional automatic feeder (30 m/min)

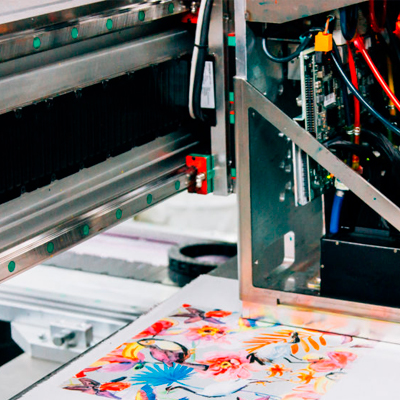

Water-based ink for porous surfaces

The Spectrum S1500 uses water-based and pigment-based inks, designed for kraft paper, cardboard, corrugated cardboard, paper, and other porous materials. This technology facilitates its integration into paper-based packaging workflows, delivering good color quality and readability on absorbent substrates. Combined with standard ICC color management and single-pass mode, it offers a digital solution designed for consistency, short turnaround times, and repeatable production within the supported thickness range.
