Uses
Projects you can do with the Printer:
Designed for versatile merchandising
The Spectrum 0690 PRO is designed as the ideal printer for merchandising, allowing you to print directly onto a wide variety of substrates in a 60×90 cm format. Its three Epson i3200 printheads and piezoelectric inkjet technology enable resolutions of up to 2400 dpi for projects requiring detail and high definition. With up to 8 colors available, including white, varnish, and fluorescent inks, you can produce pieces with high visual impact and various finishes. The ability to print on materials up to 300 mm thick expands the range of applications without the need for additional processes. The use of eco-friendly UV LED ink, which is solvent-free and VOC-free and compliant with REACH and RoHS regulations, helps reduce environmental impact. All of this makes it a practical solution for expanding the catalog of merchandising and visual communication products.
Stable resolution up to 2400 dpi
The Spectrum 0690 PRO combines three Epson i3200 printheads with piezoelectric inkjet technology to achieve a print resolution of up to 2400 dpi. This configuration is designed to deliver sharp text, graphics, and visual elements used in merchandising and visual communication. The print speed listed in the technical specifications is 15 m²/h, allowing for the production of jobs with a maximum area of 60×90 cm at a constant workflow. Color management is handled via the ICC standard, which helps maintain consistent color reproduction across different print runs. The use of a UV LED lamp allows the ink to cure during the printing process, integrating with the eco-friendly UV ink system described in the specifications.
Prints on a variety of rigid substrates
The Spectrum 0690 PRO is designed to work with a wide range of materials listed in its technical specifications. It can print on glass, TPU, ceramic, aluminum, wood, metal, acrylic, as well as on phone cases and other similar substrates. Its maximum print area is 60×90 cm, and it accepts media up to 30 cm (300 mm) thick, making it possible to work with both flat pieces and finished products that fall within this range. Thanks to the use of white and varnish in the color configuration, it can handle both transparent and opaque materials as required by the design. This versatility in media makes the machine a suitable option for various types of merchandising applications and personalized products.
Complete setup for visual production
The Spectrum 0690 PRO features specifications designed for the production of visual displays and merchandise.
- Model: 0609 PRO, Visual series.
- 3 Epson i3200 printheads featuring Japanese technology.

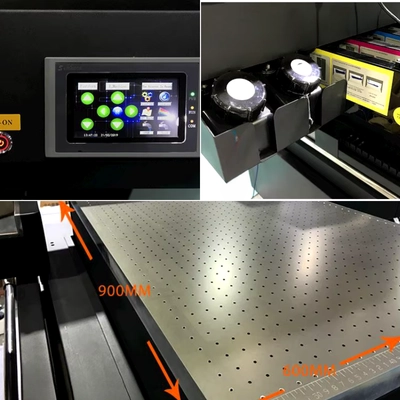

- Maximum print area: 60 cm × 90 cm.
- Print speed: 15 m²/h.
- Printing technology: Piezoelectric inkjet.
- Ink type: Eco-friendly UV-curable ink.
- Colors: CMYK + White (W) + Varnish (V) and option for up to 8 colors (C, M, Y, K, FM, FY, V, W).
- Media thickness: up to 30 cm max.
- Media: glass, TPU, ceramic, aluminum, wood, metal, cell phone cases, acrylic, etc.
- UV LED curing lamp.
- RIP Software: Photoprint.
- Interface: 1000M LAN Ethernet Network Cable.
- Voltage: 220VAC (±10%), 32A, 50/60Hz.
- Operating environment: 18–35°C, 30–70% RH.

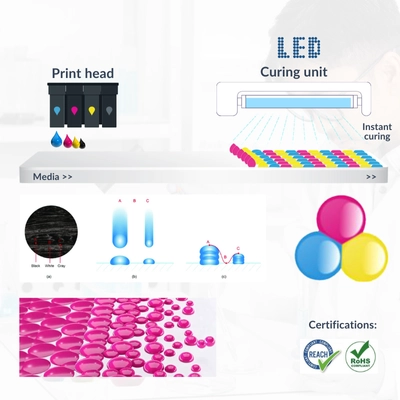

Certified eco-friendly UV LED ink
The Spectrum 0690 PRO uses eco-friendly UV-curable ink formulated to work with a UV LED lamp. The ink is free of solvents and volatile organic compounds (VOCs), which helps reduce emissions in the work environment. According to the information provided, the UV LED ink complies with REACH and RoHS regulations, ensuring minimal environmental impact within these parameters. The color system supports up to 8 channels: Cyan, Magenta, Yellow, Black, Fluorescent Magenta, Fluorescent Yellow, Varnish, and White, allowing for the combination of color, varnish effects, and white according to job requirements. Color management via the ICC standard is integrated into this system to control color reproduction. All of this is coordinated with curing via UV LED lamps, as indicated in the equipment’s technical specifications.
