Compact hybrid for professional production

The Spectrum HB 9060 PRO combines a manageable 900×600 mm form factor with features geared towards professional environments. According to the technical specifications on page 1, it works with up to four Epson i3200-U1 printheads, enabling a stable solution for hybrid UV production. The 150 mm print height facilitates working with larger parts within this range. The CMYK+W+V color configuration offers six colors (C, M, Y, K, white, and varnish), allowing for working with light and dark backgrounds and creating special finishes. The one-button automatic cleaning system simplifies daily maintenance. The Hiwin rail guide and Leadshine motor, described on the same page, contribute to the mechanical stability of the movement. The use of solvent- and VOC-free UV LED ink, compliant with REACH and RoHS regulations, integrates seamlessly with this system for a productive solution with minimal environmental impact within the specified parameters.

Up to 10 m²/h and 2400 dpi

The Spectrum HB 9060 PRO, with four i3200 printheads, achieves speeds of 10 m²/h in four passes and 8 m²/h in six passes. This configuration allows you to choose between higher productivity or greater coverage depending on the type of job. The print resolution is up to 2400 dpi, combined with piezoelectric inkjet technology, which enhances the definition of text, graphics, and details in the 900×600 mm print area. The use of Epson i3200-U1 printheads and standard ICC color control help maintain stable droplet formation and color consistency. The result is a hybrid printer capable of balancing speed and quality within the provided technical parameters.

Hybrid for rigid and varied applications

The Spectrum HB 9060 PRO is designed as a hybrid UV LED printer, combining a 900×600 mm print bed with a 150 mm print height. This allows for working with different types of parts and substrates that fit this thickness within the UV LED environment. The CMYK+W+V color configuration facilitates printing on light, dark, or transparent materials using white, and applying varnish for highlights and specific effects. The optional AI-powered visual scanning system for positioning (see the same page) helps with print registration. Together, these features make it ideal for Visual line applications such as merchandising, decoration, and custom projects that fit the 900×600 mm format.

Hybrid UV equipped for intensive use

The Spectrum HB 9060 PRO integrates key functions and components for continuous operation in a compact format.

Model: HB-9060 PRO

Printhead: Up to 4 Epson i3200-U1 printheads.

Print area: 900×600 mm.

Print height: 150 mm.

Colors: CMYK + W + V (6 colors).

Printing technology: Piezoelectric inkjet.Speeds (4 printheads): 4 passes 10 m²/h; 6 passes 8 m²/h (page 1).One-button automatic cleaning system.

AI visual scanning system for positioning (optional).

Automatic Z-axis height measurement.

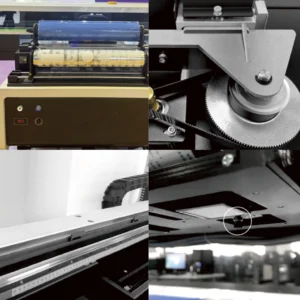

Hiwin rail guide and Leadshine motor.

Printing software: Photoprint / Maintop.

Operating environment: 22–28 °C, 40–60% humidity.

Packaging size: 2140×1660×1160 mm (4.12 m²); indicated working space: 1000×1420×1045 mm; power 4500 W

Eco-responsible and functional UV LED inks

The Spectrum HB 9060 PRO uses solvent- and VOC-free UV LED ink, formulated to comply with REACH and RoHS regulations, ensuring minimal environmental impact within the specified parameters. The color system operates with up to six channels: Cyan, Magenta, Yellow, Black, White, and Varnish (CMYK+W+V), managed via standard ICC color control. Curing is achieved using UV LED lamps, integrated with piezoelectric inkjet technology and Epson i3200-U1 printheads. This combination allows the ink to adhere to substrates compatible with the hybrid system, maintaining the eco-friendly approach described for the Spectrum HB 9060 PRO.
